Linear High Bay LED Lights: A Type of High Bay LED Lights from Murcu

Types of Linear High Bay LED Lights

There are different types of linear high bay light fixtures according to features that make them perfect for various purposes.

Here are a few examples:

Integrated Linear High Bay LED Lights

These LED linear high bay lights contain LEDs integrated directly into the fixture. These LEDs are not replaceable.

These LED linear high bay lighting fixtures are used in warehouses, manufacturing facilities, and large retail spaces.

Modular Linear High Bay LED Lights

These high bay linear LED lights contain replaceable LED modules, which makes them easy to customize with different LED modules.

These linear high bay fixtures are used in spaces requiring adjustable lighting, such as event venues or production lines.

Dimmable Linear High Bay LED Lights

These linear high-bay LED light fixtures use a dimming control system and provide comfortable lighting when needed.

These linear LED lights are used in Gyms, retail stores, and multi-use commercial areas.

Motion-Sensor Linear High Bay LED Lights

These linear high bay LED lights with motion sensors detect movement and are activated, which makes them energy efficient and improves security.

These high bay linear lights used warehouses, parking facilities, and areas with sporadic foot traffic.

Emergency Linear High Bay LED Lights

These linear high bay lighting uses built-in backup batteries to work even when the electric supply is unavailable.

These high bay lights are used in emergency exits, healthcare facilities, and industrial settings

Tunable White Linear High Bay LED Lights

These led linear high bay lighting fixtures provide selectable colour temperatures to adjust to different activities or times of the day.

These linear LED fixtures are used in offices, schools, and retail stores.

Features of Linear LED High Bay Lights

The features of the best linear high bay LED lights are the following:

Energy efficient

Linear high bay LED light fixtures use LEDs to convert electrical energy into light.

These linear high bay LED lights save 60-90% of energy and produce less heat than traditional high bay lights, such as fluorescent and metal halides.

Long lifespan

LED linear high bay lighting is durable because these fixtures can withstand shocks, vibrations, and extreme temperatures.

The linear LED high bay lighting has an average lifespan of 50,000 to 100,000 hours.

If these high bay linear LED lights are used 12 hours a day, they could last up to 11 years.

Uniform light distribution

High bay linear LED lights with wide beam angles produce more uniform light to cover larger areas.

These linear light fixtures have different beam angles, such as 30°, 60°, 90°, etc.

These linear lights illuminate the work area evenly without shadows or dark spots.

High lumen output

Linear high bay LED lights produce very bright light in your workspace.

These linear lights have a lumen efficacy of 140 to 150 lm/W.

An 87W Solis Latte Linear High Bay Lights with a lumen efficacy of 140 lm/W provide 12180 lumens.

IP rating and impact protection

Linear high bay LED lights have an ingress protection rating of 65, which means these fixtures are dustproof and can withstand low-pressure water jets from any direction.

These linear fixtures have an impact protection rating of IK08, which means they withstand an impact of 5 joules (1.7kg mass dropped from 300mm above the surface).

Applications of Linear High Bay LED Lights

Linear high bay LED light fixtures are used in commercial and industrial places with high ceilings. Here are a few applications of LED linear lights.

1. Warehouses
2. Factories
3. Gymnasiums
4. Retail spaces
5. Parking lots

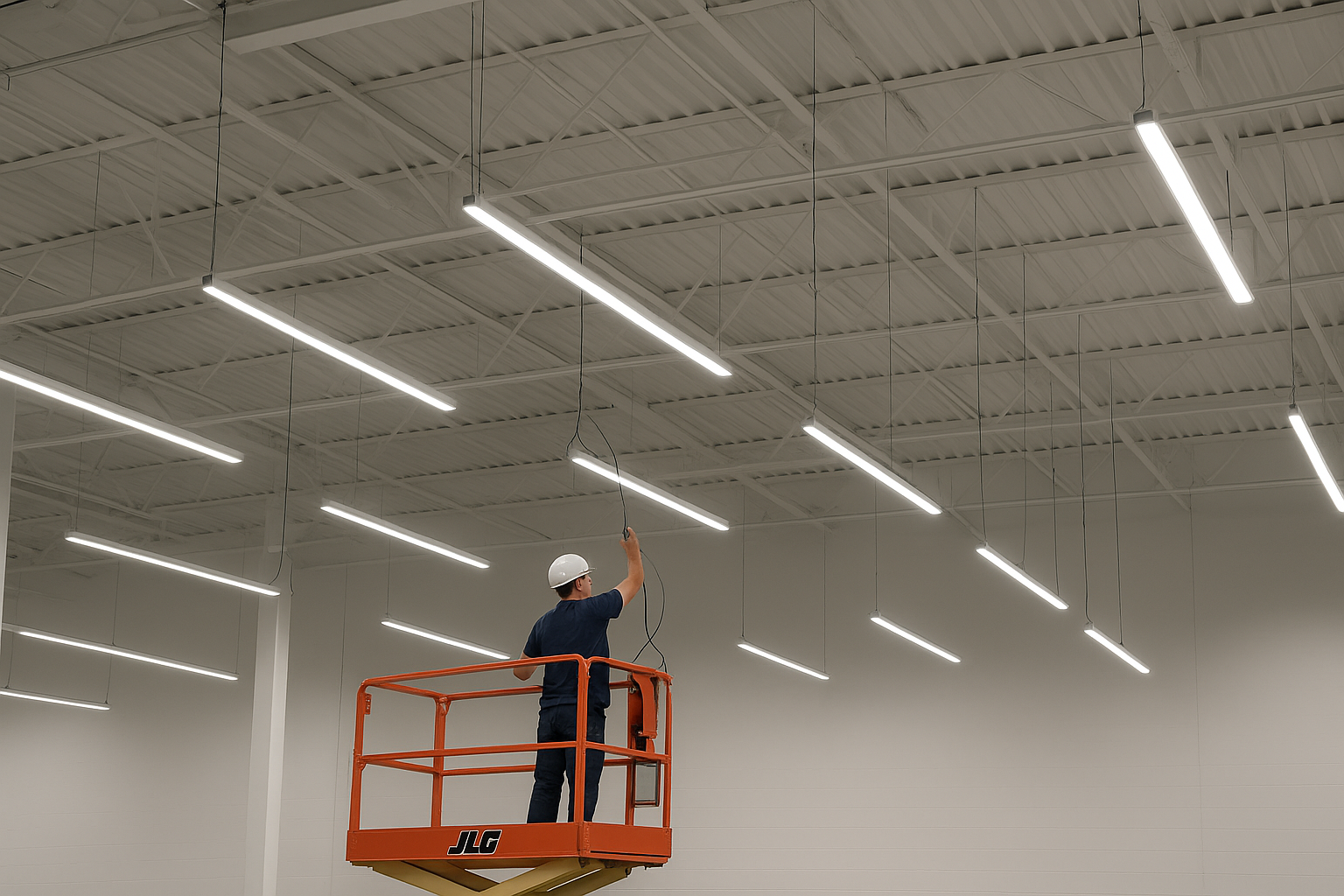

Installation of Linear High Bay LED Lights

There are a total of 3 methods of installation of linear LED fixtures.

1. Hanging installation
2. 3/4 NPT installation
3. Pendant installation

Hanging installation

The step-by-step process is the following:

Turn off the electric supply

1^st step is to turn off the electric supply to ensure safety during installation.

Wiring the LED light fixture

How to wire led linear high bay lights?

2^nd step is the wiring of the LED light fixture. Open the junction box by losing the screws and connect the black wire to the live wire, white to neutral, and green to ground.

The dimmer can be connected to dimming wires. The purple wire dims up, and the gray wire dims down.

Now pass the wires through the hole in the cover and tighten the screws to close it up.

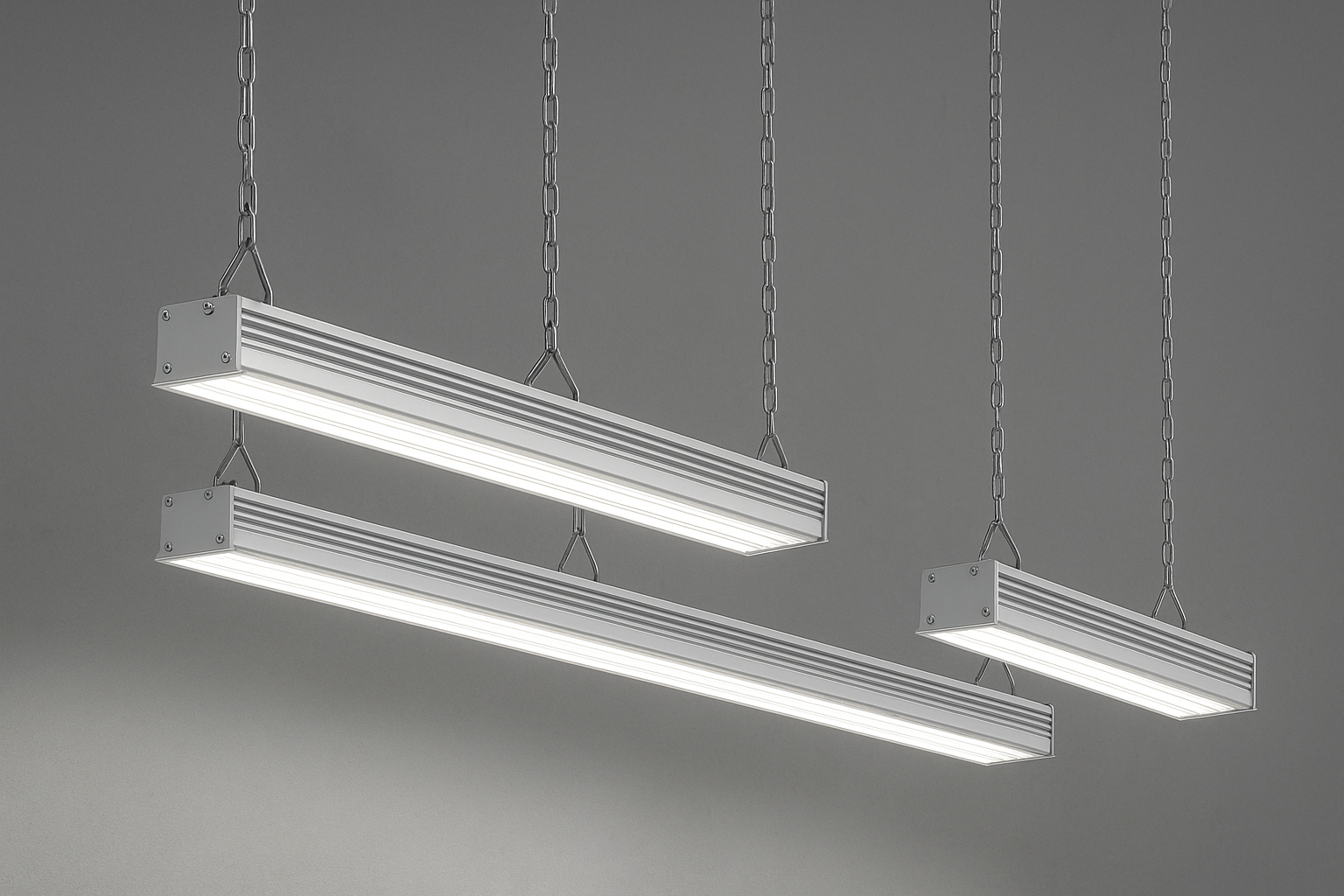

Suspend with hook and chain

Attach the hook to the linear LED light fixture, pass the chain through the hook, and suspend the fixture by lifting it with the chain and hanging it with a crossbar already installed on the ceiling.

Now turn on the electric supply to adjust the lighting according to your needs.

3/4 NPT installation

Turn off the power supply to ensure safety.

Fix the bracket and Light on the steel pipe

Install and suspend steel pipe on the ceiling. Attach the U-bracket to the steel pipe using 3/4 NPT. Then attach the U-bracket with linear light fixtures with screws. Now, the linear high bay light is suspended. The next step is wiring, as described in the previous method.

Finally, the linear light is turned on to adjust the light according to needs.

Pendant installation

Turn off the power supply for safety purposes.

Mount U-brackets and suspend linear light fixture

Two U-brackets must be affixed to the ceiling or crossbars already suspended from the ceiling. The distance between the two U-brackets must be the same as the holes on both sides of the linear high bay LED light fixture. Now screw both brackets on the light fixtures so it’s suspended.

Follow the wiring and power-up steps as described in the previous method.

Different Sizes of Linear High Bay LED Lights

LED linear high bay fixtures are in different sizes and suitable for different areas. A few examples of the best linear high bay LED lights are as follows;

2 ft. linear high bay LED light

2 feet linear high bay light fixtures are used for focused lighting in smaller areas with 12—20 ft ceiling heights, such as warehouses, workshops, retail shops, etc.

4 ft linear LED high bay lights

4 feet linear high bay lights balance brightness and coverage in larger areas with 15–30 feet ceiling height like warehouses, manufacturing facilities, large retail spaces, etc.

8 ft linear LED high bay lights

8 feet LED linear high bay light fixtures are long fixtures that provide extensive coverage for large areas with over 25 feet of ceiling height like industrial facilities, airplane hangars, large distribution centers, etc.

Different Wattage of Linear High Bay LED Lights

Wattage is the indicator of power consumption by LED light. Linear LED light fixtures with different wattage are the following:

1. 100w led linear high bay light
2. 150w linear led high bay light
3. 165w linear led high bay light fixtures
4. 300w linear led high bay light

While choosing the required wattage linear LED light, consider the following factors:

Power consumption

High-wattage linear LED light consumes more power and produces more light.

Required Brightness

High-wattage LED light produces more brightness. The required lumen outputs according to ceiling height are the following:

1. 10-15 ft: 10,000 to 15,000 lumens
2. 15-20 ft: 16,000 to 20,000 lumens
3. 25-35 ft: 33,000 lumens

Spacing of Linear High Bay LED Lights According to Ceiling Height

The space between lights depends on many factors, such as beam angle, space shape and size, task requirements, and ceiling height.

High bay linear LED lights are installed at specific distances according to the ceiling height of your area.

Here is the list of the recommended distance between lights;

1. 10-feet ceiling requires 10-12 feet apart lights
2. 20-feet ceiling requires 15-20 feet apart lights
3. 30-feet ceiling requires 20-25 feet apart lights
4. 40-feet ceiling requires 25-35 feet apart lights

How Many Linear High Bay LED Lights Do I Need?

If you need to calculate the total number of linear high bay light fixtures for your area, consider the following factors:

1. Size of area: Calculate the length, width, and height of your area’s ceiling. Then, multiply the length by the width to calculate the square foot area.
2. Desired Lumens: Consider the required brightness in your area. Brightness is measured in lumens. The average lumen of linear high bay light is 12,000 to 30,000, directly linked to the light’s wattage.
3. Foot-Candles or Lux Requirements: Foot-candles requirements are next important. Different areas required different foot-candles. A few examples are the following:
   • For warehouses: 30-50 foot-candles (300-500 lux)
   • For industrial settings: 50-100 foot-candles (500-1000 lux)
   • For commercial or recreational areas: 100-200 foot-candles (1000-2000 lux)
4. Height of Ceiling: Another essential point to consider is the height of the ceiling. Higher ceilings require more wattage of light to be installed to provide enough uniform lighting to your areas.
5. Efficiency of LED Lights: The luminous efficiency of light is also an essential factor. A linear high-bay light fixture with more Lumens/watts produces brighter light than low-efficiency.

Here is an example calculation to make you understand more effectively.

Example:

• Space Dimensions: 100 ft (length) × 50 ft (width) = 5,000 square feet
• Ceiling Height: 20 ft
• Required Illumination: 50 foot-candles (typical for a warehouse)
• Light Output Per Fixture: 20,000 lumens per light (a common value for Linear High Bay LEDs)

Step 1: Calculate Total Lumens Needed

1 foot-candle = 1 lumen per square foot.

Total Lumens Needed = Area (sq. ft.) × Foot-Candles

Total Lumens Needed = 5,000 sq. ft. × 50 foot-candles

Total Lumens Needed = 250,000 lumens

Step 2: Calculate the Number of Lights Needed

Divide the total lumens needed by the lumens provided by each light.

Number of Lights = Total Lumens Needed / Lumens Per Light

Number of Lights = 250,000 / 20,000 = 12.5

Since you can’t have half a light, round up to 13 lights.

So, you will need 13 LED linear high bay lighting fixtures for a 100 × 50 feet warehouse with a 20 feet ceiling and 50 foot-candles of illumination.

Murcu, A Custom Linear High Bay LED Lights Manufacturer

Murcu is the best linear LED high bay lights supplier, providing the best quality high bay LED lights.

High bay LED lights for LED warehouse lighting include the following types:

1. UFO high bay LED light
2. Linear high bay LED light

Murcu, a China linear high bay LED lights manufacturer and supplier, offers the Solis Latte Linear High Bay Lights.

Get LED linear high bay lights wholesale from Murcu. The features of Murcu Solis Latte Linear High Bay Lights are the following:

1. Wattage: These high bay linear fixtures are energy efficient. The wattage of the Solis Latte Fixture is 87 W.
2. Efficacy: These linear lights are very bright. The luminous efficacy is up to 140 lm/w. These lights have 12180 lumens, which makes them perfect for commercial use.
3. Beam Angle: Various beam angles, 30°, 60°, 90° and custom options are available. These lights can cover wide areas like warehouses.
4. Lifetime: These LED linear lights save your cost for lighting. These LED lights have a long lifespan of 100,000 hours and have a 5-year warranty.
5. IP Rating: IP65 led linear high bay light is dust resistant and low-pressure water.

The bottom line

Linear high bay LED lights are linear in shape, 2 to 8 feet long, and installed at a high ceiling of 12 to 40 feet in warehouses, factories, gymnasiums, retail spaces, and parking lots.

High bay linear LED lights include integrated, modulator, dimmable, motion sensors, emergency, and tunable LED lights.

Features of linear high bay LED light fixtures include energy efficiency, long lifespan, uniform lighting, high lumen outputs, IP65 rating, and IK08 impact protection.

The installation methods of linear high bay LED lighting include hanging, 3/4 NPT, and pendant installation.

Linear high bay LED lights come in different wattages like 100w, 150w, 165w, and 300w and sizes like 2 ft, 4 ft, and 8 ft.

The spacing and number of high bay LED linear light fixtures needed for your space are mentioned above in detail.

Murcu offers top-quality Linear high bay LED lights with great features and provides customized options to meet your needs.
