UFO LED High Bay Light Vs Linear High Bay LED Lights
High bay lighting are LED light fixtures for large inner spaces with high ceilings, generally 20 feet high. These LED lighting fixtures deliver invariant illumination to storehouse aisles, plant floors, gyms, retail showrooms, and other marketable settings, and make sure safety and productivity. By furnishing bright light over a wide area, LED high bay lights enhance visibility and reduce accidents, which is pivotal in extensive spaces. LED technology further boosts performance ultramodern LED high bay lights last up to 50,000 hours or further – far longer than metal halides – and consume significantly lower energy. In short, choosing the right high bay lighting is vital for comfort, effectiveness, and cost savings in industrial and commercial places.
High bay lighting fixtures come in two main styles round “ UFO ” lights and rectangular linear lights. A UFO LED high bay light has a indirect, goblet- suchlike shape (hence the name) and generally hangs from a central hook or bracket. Linear high bay lights are long and rectangular shaped, frequently installed in rows or pairs along ceilings. The differences in design, light distribution, installation, and cost between these two types – UFO LED High Bay Light vs Linear High Bay LED Lights – will help installation directors, electricians, and contractors choose the stylish option for a given space.
Design and Light Distribution of UFO LED High Bay Lights vs Linear High Bay Lights

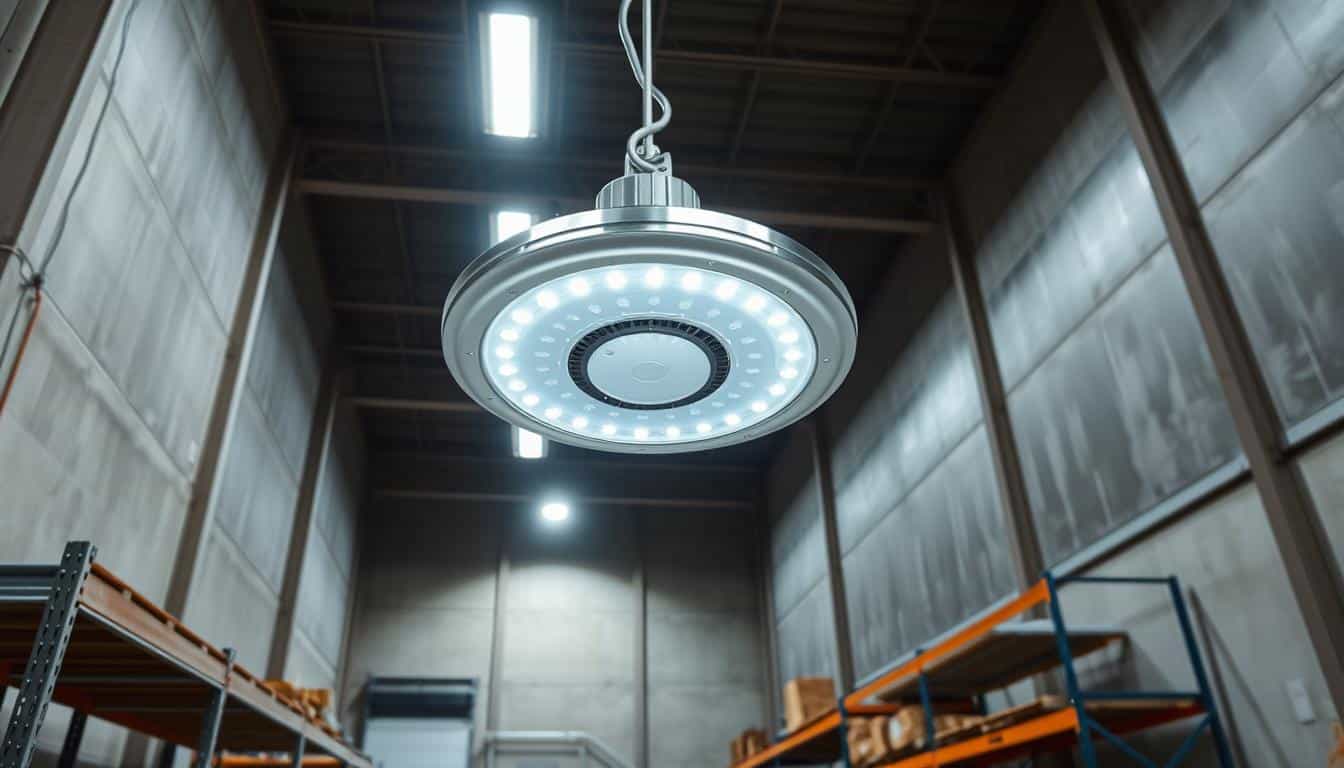

UFO (Round) LED High Bay Lights have a dome-like, compact design with a hook or bracket for hanging. This shape frequently contains an array of LEDs on the bottom and a large heat-sink on top. UFO high bays with a round shape produce light in all directions (generally 360 °) around the LED fixture. This results in consistent, uniform and omnidirectional illumination that covers a wide area below and around the light. This type of light distribution is ideal for general lighting of open spaces. For illustration, a 150W UFO high bay can produce roughly 21,000 lumens and replace a 525W metal halide while furnishing uniform and glare-free light. The compact size also makes UFO lights fairly light-weight; numerous models weigh just a few pounds allow easy installation. Overall, their sleek and goblet-like appearance is visually invisible and blends well in industrial and commercial places.

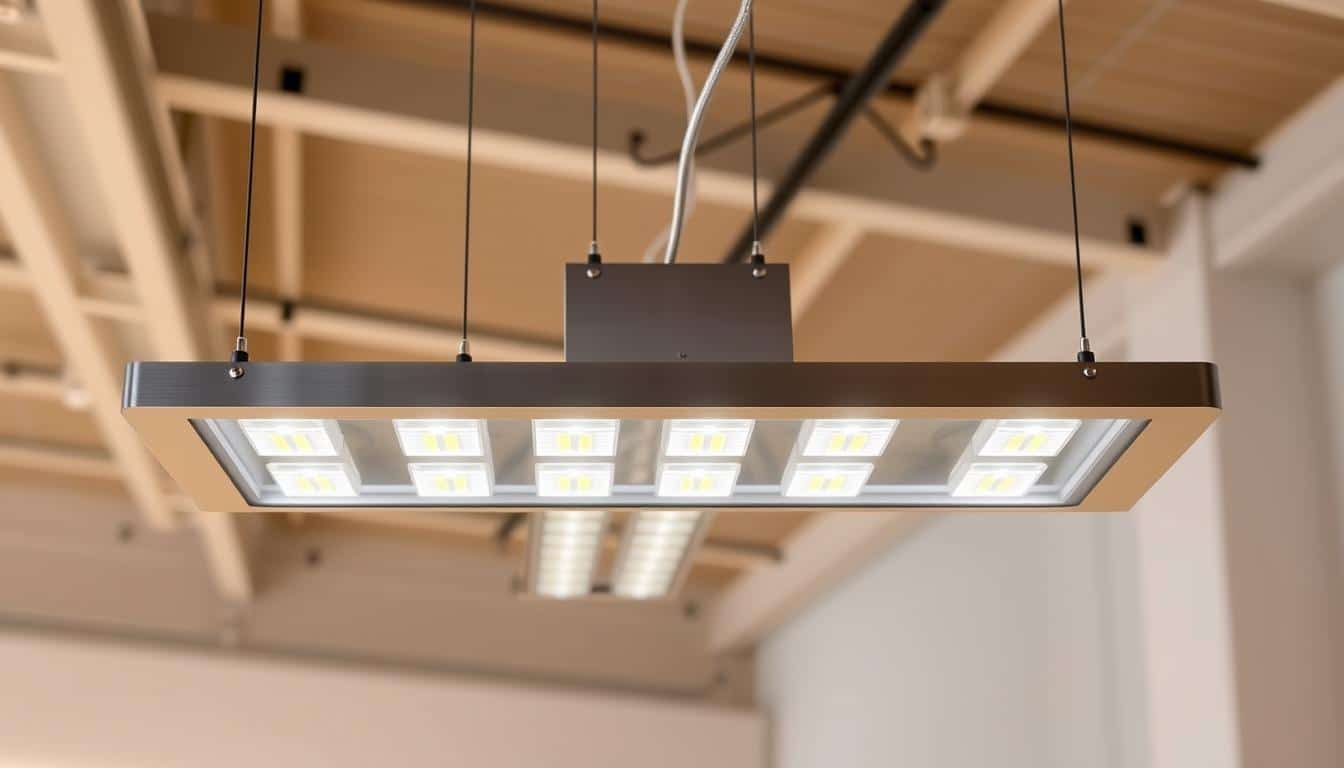

Linear LED High Bay Lights are long, narrow LED fixtures (analogous in form to fluorescent troffers or batten lights) that generally mount via chains/brackets on each end. The LED modules spread out along the length, and a diffuser or lens covers the LEDs. This elongated design generates a rectangular beam pattern and light is emitted primarily over and slightly outward along the LED light fixture length. Linear high bay lights don’t throw light 360 °; rather, they concentrate illumination in a wide but limited angle. This produces bright and uniform light across long spaces similar as storehouse aisles or assembly lines. For example, a 2- ft linear high bay light (110W) can produce about 15,000 lumens, casting light slightly over a long area. The linear shape factor is ideal for mounting in rows; when several LED fixtures are aligned in a grid or line, they produce invariant light with minimum gaps. Aesthetically, linear high bays have a ultramodern “ strip ” look and can give directional lighting control through louvers or optics on the sides.
Key design contrasts: Round UFO lights exceed at wide- area, omnidirectional lighting with a single- point mount. Linear lights concentrate light in one direction along the beam, making them suited for long corridors or rows of shelving. UFO high bay LED lights generally have a single hook- mount or type (one point of suspend), whereas linear LED fixture generally use two mounting points or a bar across the ceiling (to keep the long body stable). As a result, UFO high bay lights are frequently easier to install in tight locales due to their one- point hanging system, while linear high bay LED lights may bear more precise alignment and support. Both types are rugged with robust LED heat-sink assemblies, frequently rated IP65 for dust and humidity resistance, making them durable choices for industrial places.
Performance and Energy Effectiveness of UFO LED High Bay Lights vs Linear High Bay Lights
When comparing performance, both UFO and linear LED high bay lights can achieve high luminous efficacity (lumens per watt) – frequently 120 – 150 lm/ W or further – far exceeding aged HID technology. The difference lies more in how they deliver light rather than overall efficacity. A UFO high bay generally provides a powerful central hotspot of light directly beneath it, useful for tasks that need high brilliance from over. Linear LED lights, in discrepancy, give a more uniform light spread across their length, which can reduce the total number of LED fixtures demanded along a row.
From an energy effectiveness viewpoint, both styles offer major savings. LED high bays consume about 70 – 80 lower energy than metal halide or HID lights, plus they turn on instantly with no warm- up. UFO lights are particularly effective at illuminating space directly below the LED fixtures, with minimum wasted light outflow or to the sides. This means in high- ceiling operations more than 30 feet, a UFO can deliver demanded foot- candles on the floor with smaller lumens lost. Linear LED lights shine their light along a linear plan; their effectiveness comes from being suitable to light wide aisles from a single light fixture, potentially reducing the number of fixtures needed. For illustration, a single 4- ft linear high bay light may replace two or three UFO fixtures in a long storehouse aisle, saving on installation and wiring. In either case, ultramodern LED drivers and controls system (dimming, motion detectors) allow both types to be fine- tuned for lesser energy usage.
Especially, UFO high bays tend to be less costly per unit than linear high bay LED lights of same lumen output. This is due to their simpler shape and generally lower LED count. Linear high bays, being larger, often cost more upfront, but can come more cost-effective in large installations due to their capability to cover larger area per fixture can describe the lower total system cost (few number of lights, lower conduit, etc.) over time. Both types are excellent for meeting strict energy codes and rebate programs; utility incentives frequently cover any DLC- listed LED high bay fixtures, whether UFO or direct.
Installation and Maintenance of UFO LED High Bay Lights vs Linear High Bay Lights
Installation differs between the two styles. UFO high bay lights generally hang from a single hook or chain. This one- point suspense is quick to set up, and the round shape fixture is easy to raise and position. In discrepancy, linear LED lights frequently have two end- mount brackets or a mounting bar; installers must balance and secure the entire length. That said, linear lights are frequently lightweight per linear foot, so a 4-feet linear fixture may not be significantly heavier than a UFO of analogous lumen output. Both styles can be face- mounted or suspended, and numerous models accept standard ⅝ ″ ceiling hardwire or wire.
Maintenance requirements are analogous for both LEDs occasional cleaning of dust or cobwebs, and very little else. The lifetime of LED high bay light is generally 50,000 hours or further, meaning they can run 24/7 for over 5.7 times before reaching L70. This life greatly reduces replacement and maintenance costs. The traditional metal halide lights last around 10,000 hours and require frequent replacement. Both UFO and linear LED lights are built with durable aluminum heat sinks and robust drivers, frequently with IP65 or IP66 rating for dust and humidity. Numerous UFO lights come with shatterproof lenses and anti-glare covers. In harsh surroundings (like dusty warehouses or damp gymnasiums), both types perform reliably with minimum intervention. Overall, users require minimum maintenance demands and LEDfixtures infrequently fail, and when they do, it’s generally just switching the entire unit out after numerous years.
The designs have pros and cons, if maintenance is needed. A round UFO may allow easier bulb replace (in very old fixture) since you twist off a small cover, but ultramodern integrated LEDs mean nearly no lamp to replace. Linear LED lights may have an external driver compartment that’s easier to open for diagnostics. In practice, still, installation directors replace whole fixture rarely rather than repair parts in place, due to the low cost of LEDs over time. Importantly, both LED high bay light types drastically cut maintenance compared to legacy high bay lights, which demanded expensive ballast requirements and emitted dangerous waste (e.g. mercury).
Cost Considerations of UFO LED High Bay Lights vs Linear High Bay Lights
In comparing cost, we look at both upfront price and long- term value. As noted, UFO high bay LED lights are generally cheaper to buy initialy. For illustration, a typical 150W UFO LED can cost around $80 – $150 (depending on brand and features), whereas a 4- ft 160W linear LED light might cost $ 200 or further. This price gap is because linear fixtures have further material (long frames, further LEDs) and frequently come with fancier features (adjustable color, advanced IP rating, etc.).
But long- term operating cost can flip the balance. Linear fixtures can cover further area with fewer number of fixtures. However, using two UFO lights may leave dim spots at the ends, whereas one 4- ft linear fixture could span the whole aisle, if a storehouse needs uniform lit 40-feet long aisles. Less number of linear fixtures means lower wiring, smaller mounting points, and lower labor cost for initial setup. Over 5 – 10 years, linear LED fixtures might reduce energy bills simply by demanding less total watts in the space. Both styles save largely on energy relative to old metal halide (frequently 50 – 70 lower power consumption for the same level of brightness), so both choices will pay back through electricity savings. In addition, some utilities offer rebates for DLC- listed LED high bay lights (UFO and linear both), further improve the ROI.
Another cost factor is controls and accessories. Both UFO and linear lights are generally available with dimming, motion detectors, and adjustable wattage settings. These add- ons can reduce consumption further e.g. a motion- detector UFO can dim or shut off when no one is detected. Generally, the additional cost for smart features is analogous for both styles. Thus, decision- makers frequently concentrate less on feature cost and more on sheer coverage and light quality when budget planning.
In summary, UFO LED fixtures tend to have lower sticker price, easier mounting, and are effective for spot or small- area lighting. Linear fixtures bring more up front cost but may reduce the total number of units demanded in large- scale installations, saving labor and wiring costs. Either way, LED high bay lights quickly offset their price through energy and maintenance savings; studies note payback periods as short as 1 – 3 years in high- use scenarios.
Use- Case Scenarios of UFO LED High Bay Lights vs Linear High Bay Lights
Choosing between UFO and linear high bay LED lights depends on the specific operation;
- Storages and Distribution Centers: These frequently feature long aisles of shelving. Linear high bay lights are generally preferred than UFO. Their stretched rays cover the length of an aisle and minimizes dark spots at the ends. By mounting a series of linear LED lights down each aisle, directors ensure harmonious light distribution for picking and stocking tasks. A combination approach is also common e.g. UFOs might illuminate the large open staging areas in the center of a storehouse, while linears light the rows of racks.
- Manufacturing Plants: Work cell and equipment layout vary. UFO lights shine light if there are centralized work areas or general open floor because they can throw high- intensity light from a single point. Tasks that need focused overhead lighting (machine operations, examination benches) benefit from UFO LED light fixtures hung directly over. Again, in assembly lines that run long and straight, linear LED lights ensure uniform light along the belt or workstation.
- Gymnasiums and Recreation Centers: The high ceilings of gyms (frequently 20 – 30 ft) and the need for uniform brightness make UFO high bay light a strong choice. The omni- directional light output fills the space and keeps the ceiling area well lit, avoiding “ hot spots ” on players. Numerous gymnasiums use round high bay lights as the main lighting, occasionally supplemented by wall- mounted accent lights. That said, in-door tennis courts or gymnasiums with very long courts may use linears above the courts.
- Retail and Showrooms: In large retail spaces with 20- ft ceilings, linear high bay LED lights can produce clean lines of light and a ultramodern aesthetic. For illustration, a long row of linear LED lights over a clothing aisle or car-showroom provides contemporary styling and invariant illumination. But, in irregular shaped retail areas or big- box stores, UFO lights might be mixed in above checkout aisles or storehouse zones for supplemental lighting.
- Garages and Workshops: Automotive service bays or maintenance shops frequently use UFO lights. Their bright, central lighting helps mechanics see under hoods and on vehicles. Linear lights can also be used (for illustration, 4- ft linear light over workbenches), but numerous garages like the central “drop- down” appearance of UFO LED fixtures.
In general terms, UFO LED high bay lights exceed in spaces with very high ceilings, open floor layouts, or where a more invariant “ cocoon ” of light is desired. Linear LED high bay lights are ideal for long, narrow zones like aisles, assembly lines, corridors, or anywhere straight rays are needed. The decision frequently comes down to geometry e.g. wide-open areas favor UFO’s spread, and linear light fixtures do well in linear spaces. Installation managers occasionally combine both types together to optimize each area.

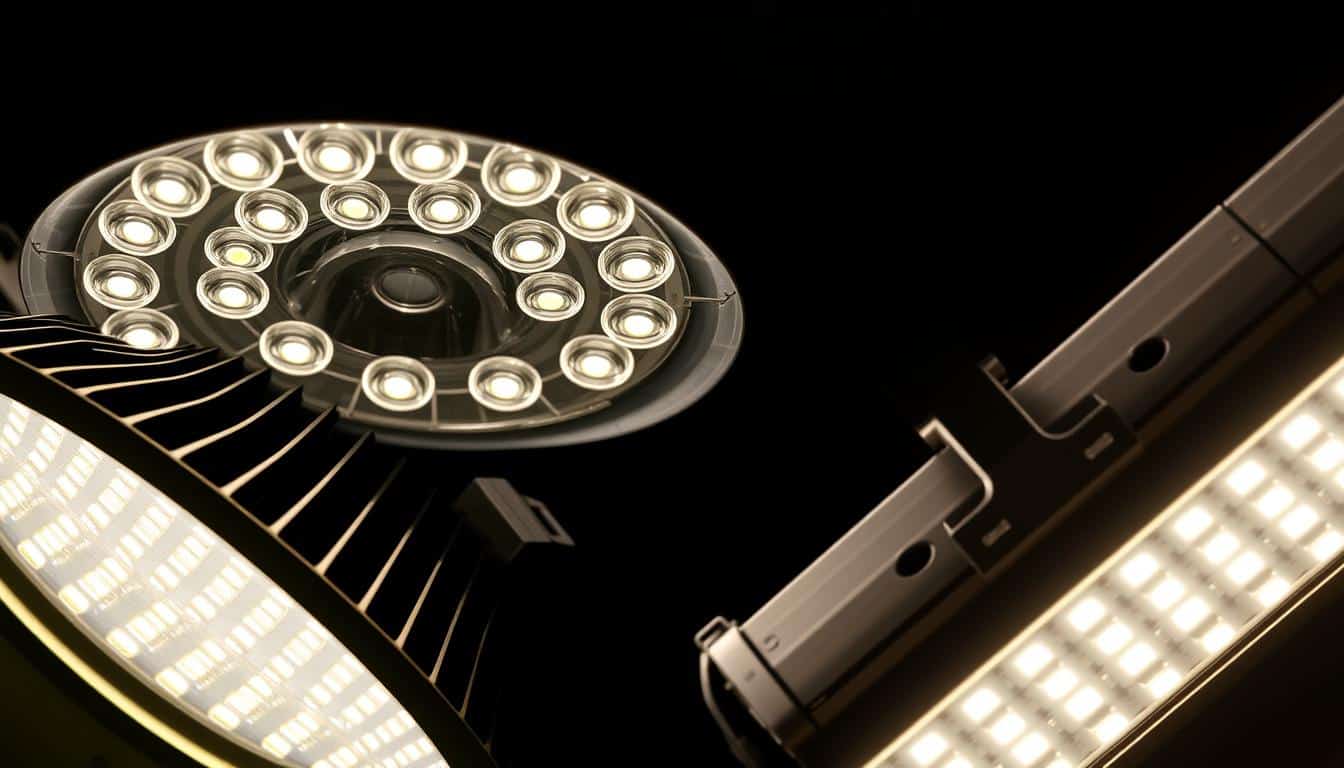

Comparison UFO LED High Bay Lights vs Linear High Bay Lights
| Feature | UFO LED High Bay Light | Linear LED High Bay Light |
|---|---|---|
| Shape & Form | Round/saucer-shaped fixture | Long rectangular bar-like fixture |
| Light Distribution | 360° omnidirectional (wide, circular pattern) | Rectangular, directional (long strip pattern) |
| Beam Angle | Wide beam (often 90°–120°) covering a large area | Medium/narrow beam along fixture length |
| Installation | Single hook/chain mount (one point) | Multi-point suspension or surface mount (ends or frame) |
| Mounting Height | Good for very high ceilings (20–40+ ft) | Good for high ceilings, especially 15–30 ft |
| Typical Use-Case | General lighting in open spaces (gyms, warehousing, hangars, high racks) | Aisles, corridors, workbenches, assembly lines, retail aisles |
| Energy Efficiency | High efficiency; focuses light below fixture, minimizing waste | High efficiency; covers more area per fixture reducing total fixtures |
| Maintenance | Minimal (LED ~50,000hr lifespan, dust-friendly design) | Minimal (LED ~50,000hr lifespan, often with easy access drivers) |
| Initial Cost | Typically lower unit cost for equivalent lumen output | Higher unit cost, but can reduce total units needed |
| Example Products | Gen13 UFO LED High Bay, Hykolity UFO Series | 2ft/4ft LED Linear Shop Light, Lithonia FBX LED |
This table summarizes key contrasts: UFO lights spread light broadly but may require more fixtures for very long spaces, while linear lights concentrate output along their length. Both styles share the benefits of LED technology (long life, instant start, no mercury).
Conclusion
When choosing between UFO LED High Bay Light vs Linear High Bay LED Lights, consider the layout and tasks of your installation. UFO lights are excellent for wide, open areas with very high ceilings, offering omnidirectional illumination and simple single- point mounting. Linear light fixtures best fit in spaces with long aisles or specific task zones, furnishing effective strip lighting that can minimize fixtures count. Both options drastically improve energy effectiveness (frequently by 50 – 70%) and last over 50,000 hours. They also reduce maintenance cost compared to old HID or fluorescent light fixtures.
Important takeaways: UFO high bay LED light fixtures give broad and intense brightness ideal for general illumination, while linear high bay LED lights give directed, invariant and uniform lighting along lengths. You may indeed combine both in a installation – for illustration, using UFOs for open floor areas and linears along rack aisles – to harness the strengths of each. Eventually, estimate your ceiling height, spatial layout, light position requirements, and budget to decide. By matching the right high bay style to your operation, you’ll achieve optimal visibility, energy savings, and functional productivity in your storehouse, plant, or retail space.
